Shkafzilla on steroids #2

Everything is working now!

The setup is actually quite simple to understand:

• The ONT box provides network access via VLAN 20.

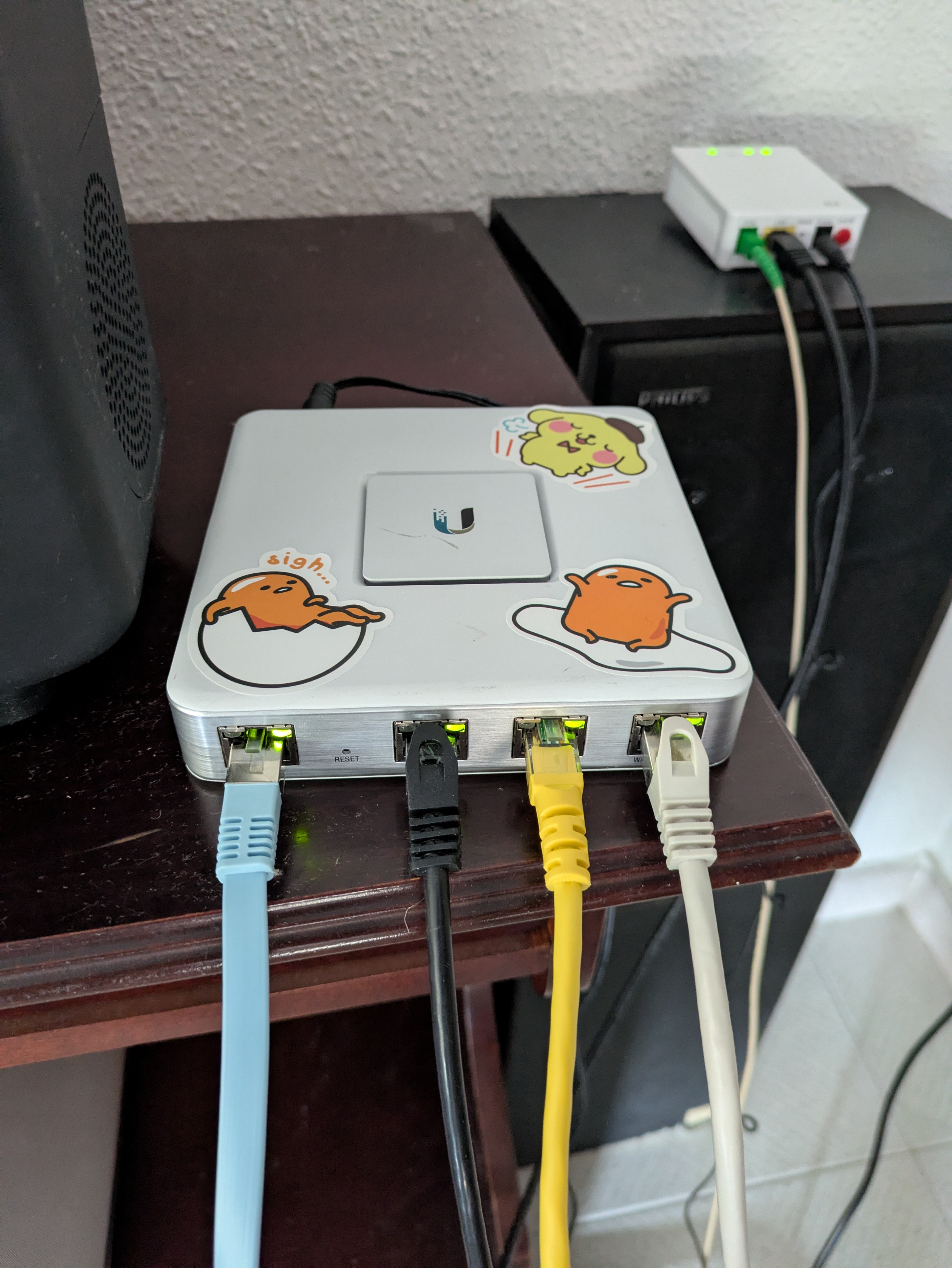

• USG removes the tag from all packets and creates a virtual subnet and a bridge.
• ASUS router is located within that subnet, while the USG provides a transparent bridge for my server ( since it requests a static IP from ISP ).

 [ ONT BOX ]
      |
      |
   [ USG ] --- [ SUBNET ]
      |            |
      |            |
 [ SERVER ]  [ ASUS ROUTER ]

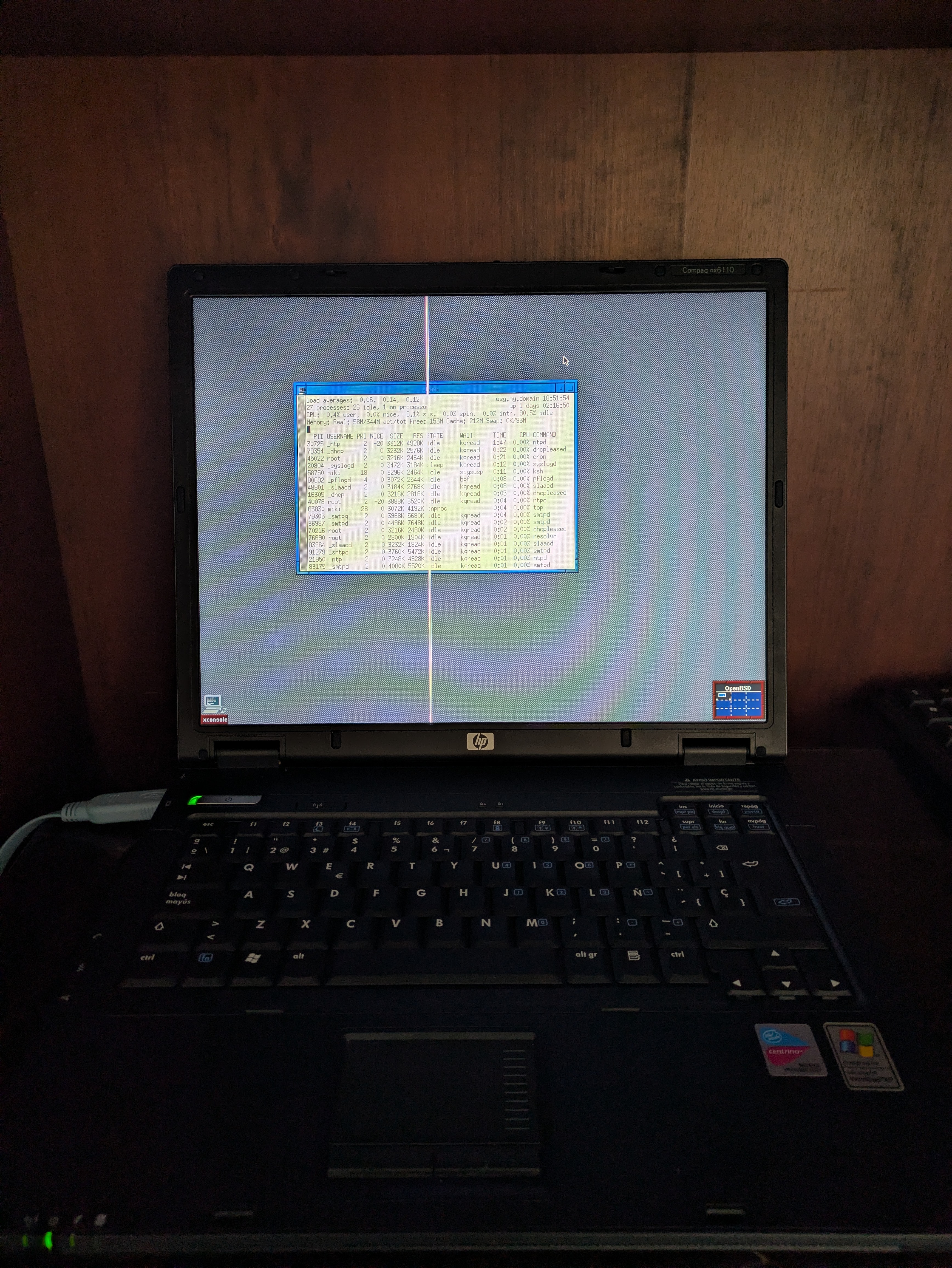

( HP Compaq nx6110, yes)

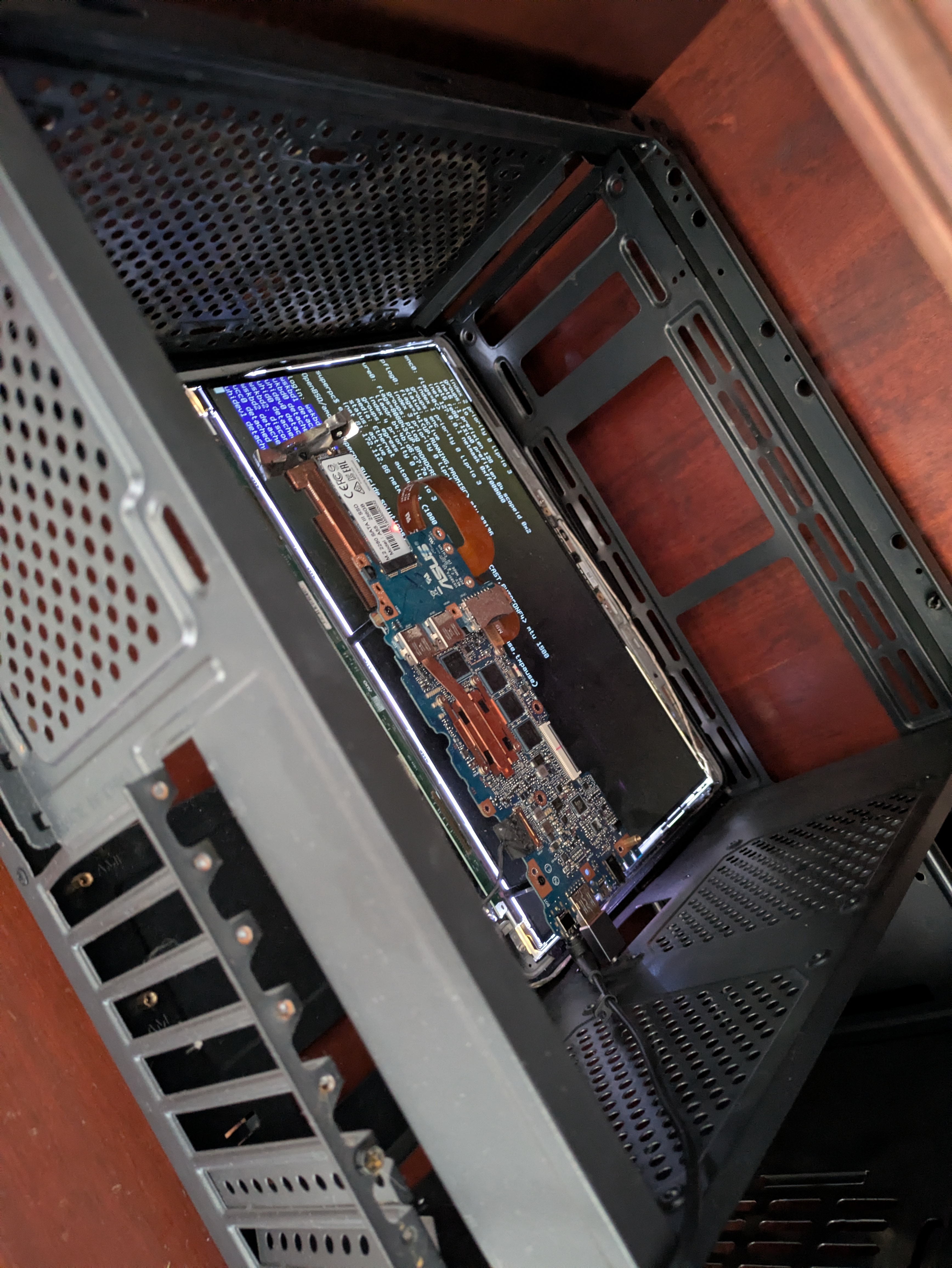

( actually, I found this computer case in the trash )

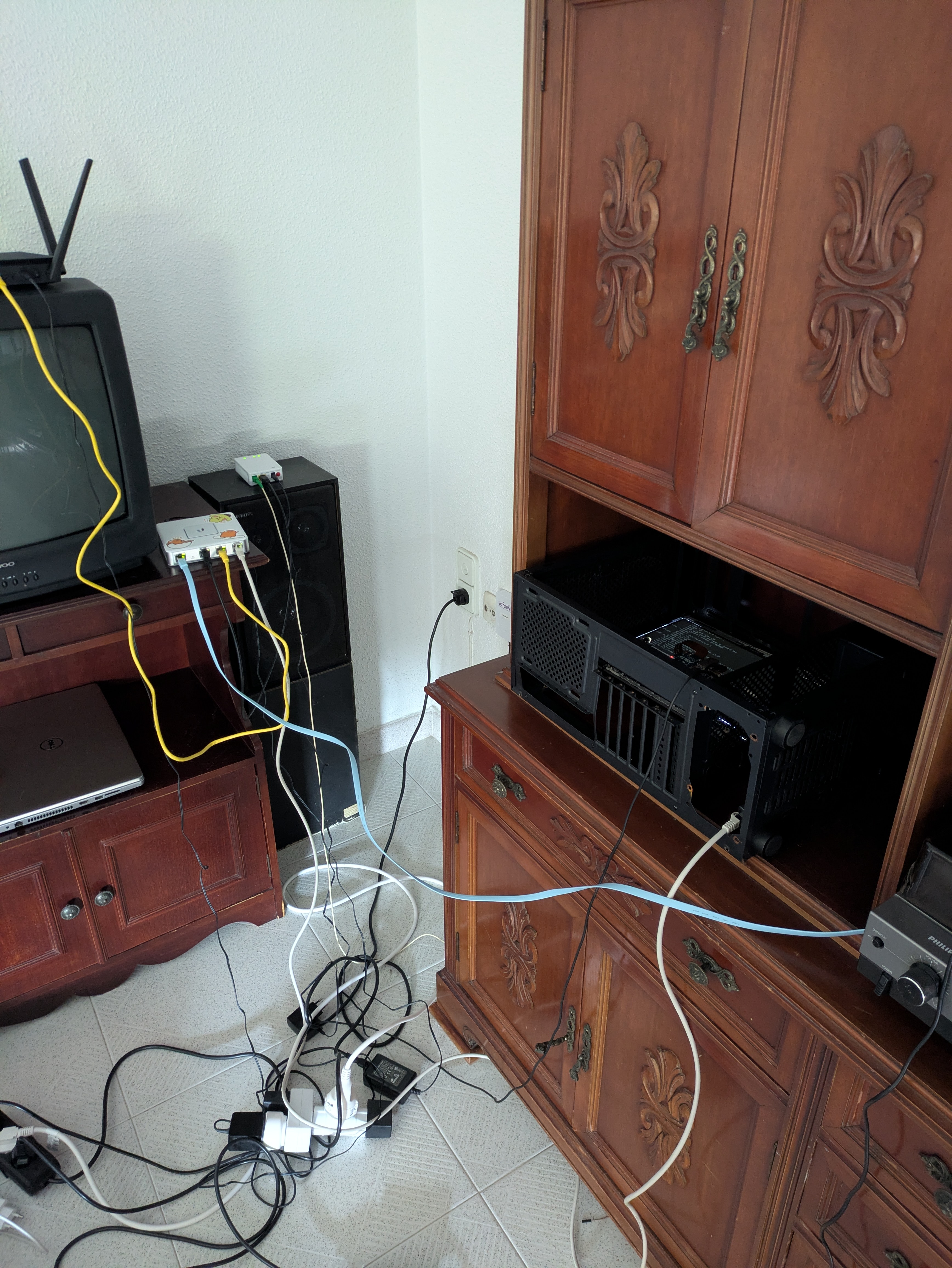

( aLoT of wires, again… nothing changed )
